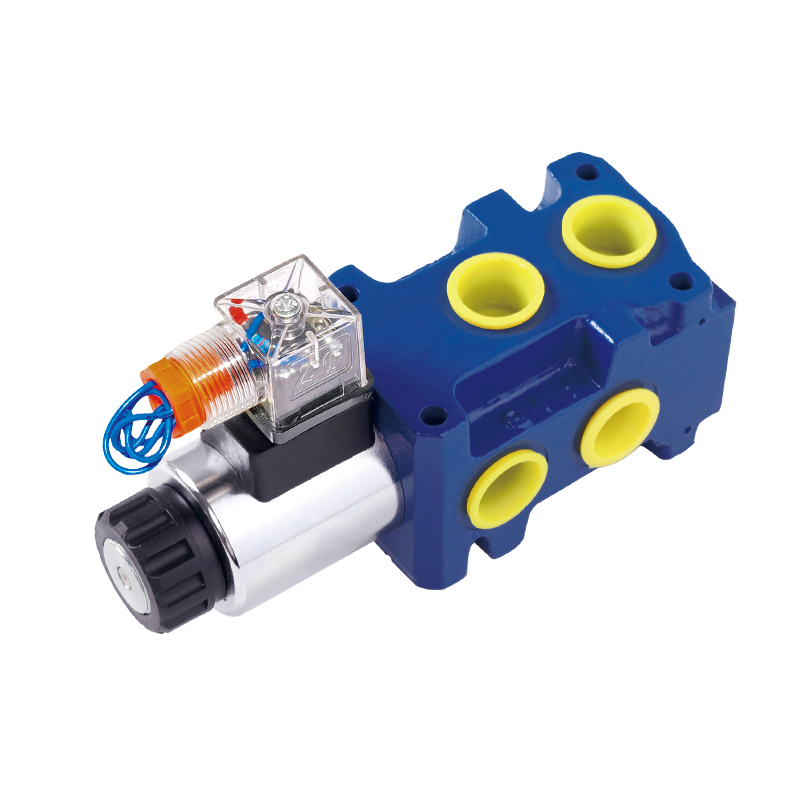

Hydraulic Solenoid Directional Valve is a type of control valve used in hydraulic systems to control the direction of fluid flow. It is a crucial component in hydraulic machinery, allowing for the control of the movement of actuators such as hydraulic cylinders or motors. The main purpose of a directional valve is to direct the flow of hydraulic fluid to different sections of a hydraulic system, enabling the controlled movement of various components.

The directional valve of key components and features typically included in a directional valve:

Valve Body: The main housing that contains the internal components and connections for hydraulic fluid.

Spool or Poppet: The moving part inside the valve that controls the flow direction. The spool or poppet can be shifted to different positions to direct the flow of hydraulic fluid.

Actuating Mechanism: The mechanism responsible for moving the spool or poppet. It can be manual, mechanical, electrical, or hydraulic, depending on the type of valve.

Ports: Inlet and outlet ports through which hydraulic fluid enters and exits the valve.

Control Element: The part of the valve that receives signals or inputs to determine the position of the spool or poppet.

Seals: Gaskets or seals to prevent leakage of hydraulic fluid.

Applications of Directional Valves:
Directional valves find applications in various industries and machinery, including:

Mobile Equipment: Such as construction machinery, agricultural equipment, and forestry machinery.

Industrial Machinery: Including presses, injection molding machines, and other automated manufacturing processes.

Material Handling Equipment: Such as forklifts and conveyors.

Marine Systems: In ship control systems for steering and other hydraulic applications.

Aerospace: Used in aircraft for controlling landing gear, wing flaps, and other hydraulic systems.

Production Advantages of Directional Valves:

Precision and Control: Directional valves provide precise control over the direction of hydraulic fluid, allowing for accurate and controlled movement of hydraulic actuators.

Versatility: These valves are adaptable to various hydraulic systems and can be customized to suit specific applications.

Reliability: Well-designed directional valves are built to withstand the demands of heavy-duty industrial applications, ensuring reliable operation over time.

Efficiency: Directional valves contribute to the overall efficiency of hydraulic systems by controlling the flow of fluid precisely, minimizing energy loss and optimizing system performance.

Automation: Directional valves can be integrated into automated systems, allowing for the remote or automatic control of hydraulic components.

Directional valves come in various types, each designed for specific applications and operational requirements. Here are some common types of directional valves:

Spool Valves:

4/2-Way Valve: This valve has four ports and two positions. It can either connect the inlet to one of the two outlets or block the flow altogether.
4/3-Way Valve: This type has four ports and three positions. It can connect the inlet to one of two outlets or block the flow completely.
Poppet Valves:

Check Valve: A simple valve that allows flow in one direction and blocks it in the opposite direction.
Shuttle Valve: Uses two check valves to allow flow from the higher-pressure port to the lower-pressure port.
Spool-and-Sleeve Poppet Valve: Combines the features of a spool valve and a poppet valve for precise control.
Rotary Valves:

Rotary Disc Valve: Uses a rotating disc to control flow direction in hydraulic systems.
Diverter Valves:

3-Way Diverter Valve: Diverts flow from one inlet to one of two outlets.
6-Way Diverter Valve: Diverts flow from one inlet to one of three outlets.
Proportional Valves:

Proportional Directional Valve: Allows for proportional control of the flow, providing variable speed and precision in hydraulic systems.
Cartridge Valves:

Cartridge Directional Valve: Compact valves designed to be inserted into a manifold. They are often used in mobile hydraulic systems.
Solenoid-Operated Valves:

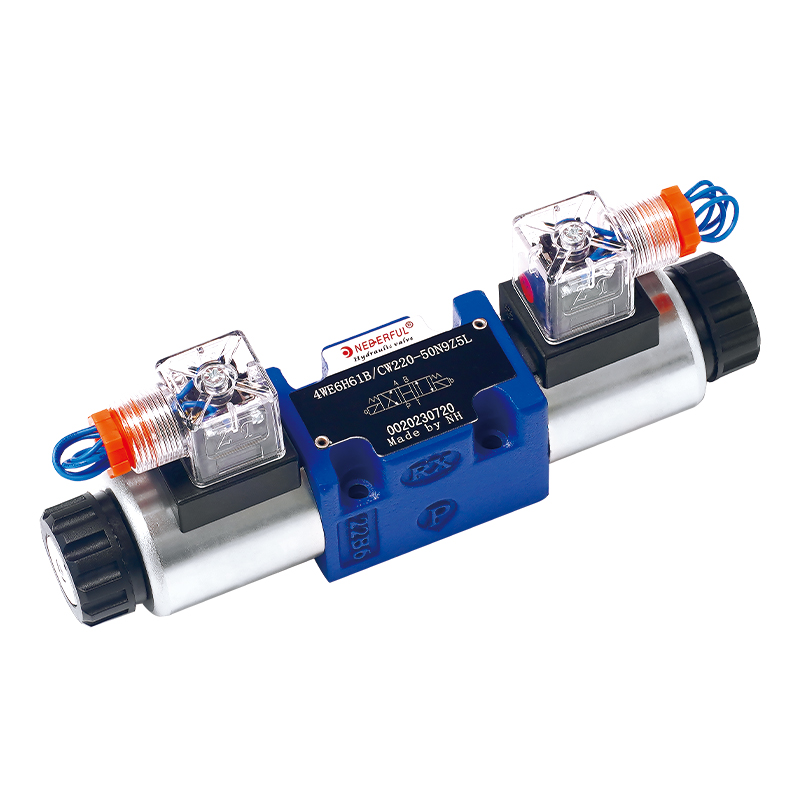

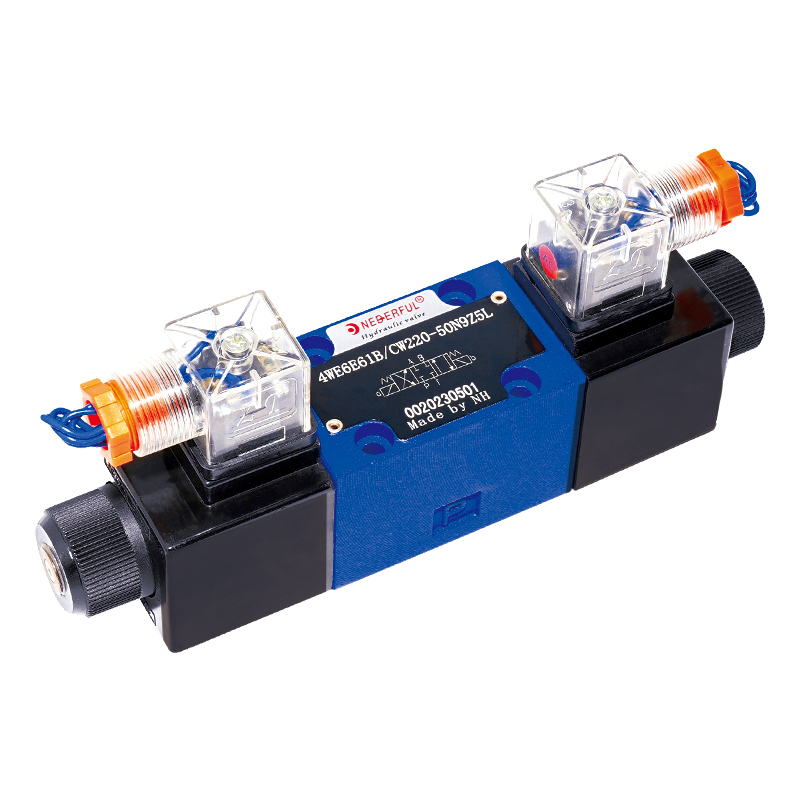

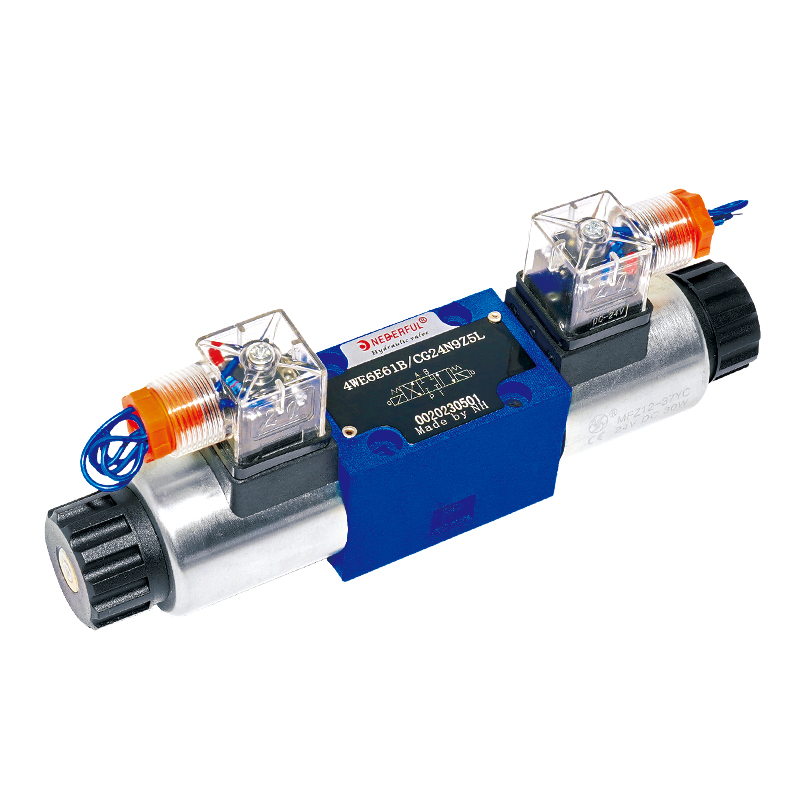

Solenoid-Controlled Directional Valve: Operated by an electromagnetic solenoid, these valves are commonly used in automated and remote-controlled systems.
Manual Valves:

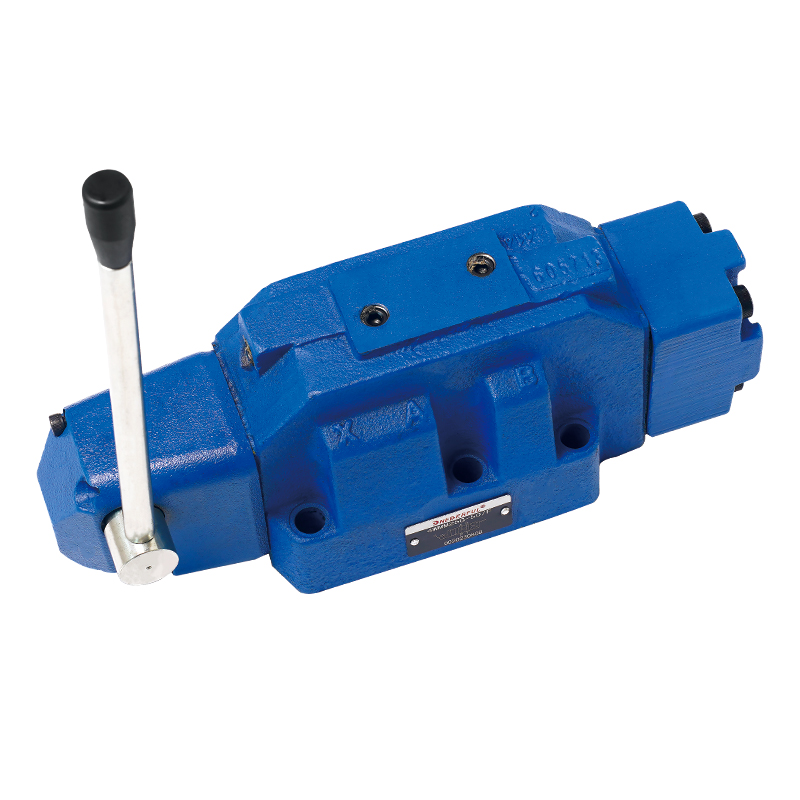

Manual Directional Valve: Operated by a manual lever, knob, or other manual means. They are often used for manual control in various applications.
Hydraulic Pilot Operated Valves:

Pilot-Operated Directional Valve: Controlled by a smaller hydraulic pilot valve, allowing for the control of larger flows with lower force.
Electrically Operated Valves:

Electrically Controlled Directional Valve: Controlled by an electric actuator, providing remote and automated control.
