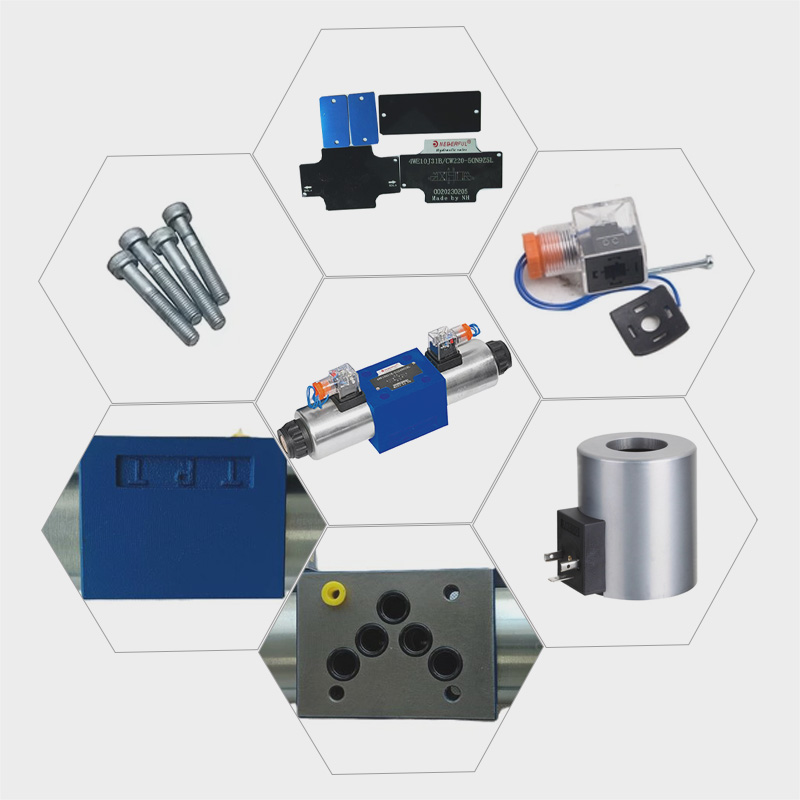

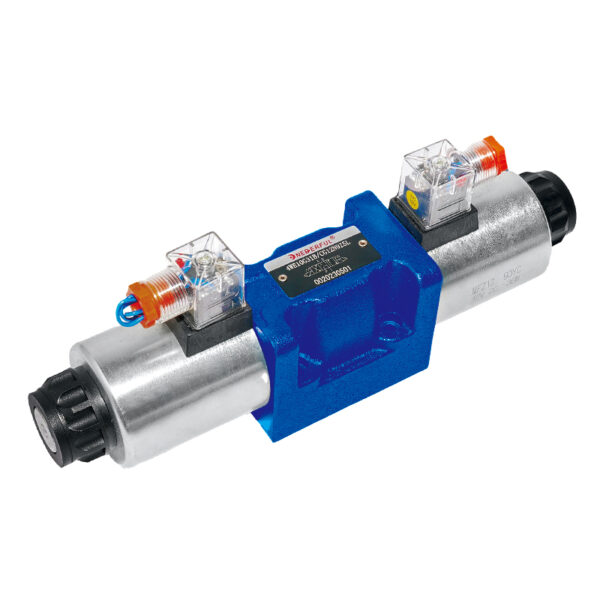

Product name: Solenoid directional valve WE10
Brand : ONEDERFUL®
Model : 4WE10G31B / CG12N9Z5L
Certificate: ISO9001-2008
Origin : China
Transportation : By sea / Air DHL / UPS / TNT / Fedex
Payment : T/T transfer Western Union PayPal L/C
Electromagnetic directional valve, often referred to as a solenoid directional valve, is a type of control valve used in hydraulic or pneumatic systems. It is designed to regulate the direction of fluid flow within a system by using an electromagnetic solenoid to control the valve’s position. The solenoid, when energized, generates a magnetic field that acts on the valve mechanism, causing it to shift and alter the flow path.
Minimum order quantity: 10 pieces
Payment method: T/T, Paypal, Western Union
Supply Ability: Annual output of 1,000,000
Delivery time: 10-15 days
Conventional packing: Wooden case
| PRODUCT PARAMETERS | ||
| Specification | 10 | |
| Max working pressure
Mpa |
P/A/B ( Oil ports ) | 35 |
| T（Oil ports） | 21 | |
| Max.Flow （L/min） | 120 | |
| Working Voltage | DC | 12/24 |
| AC | 110/220 | |
The company pursues the concept of “continuous innovation, the pursuit of first-class”, and is willing to provide domestic and foreign customers with high-quality products and satisfactory service.
