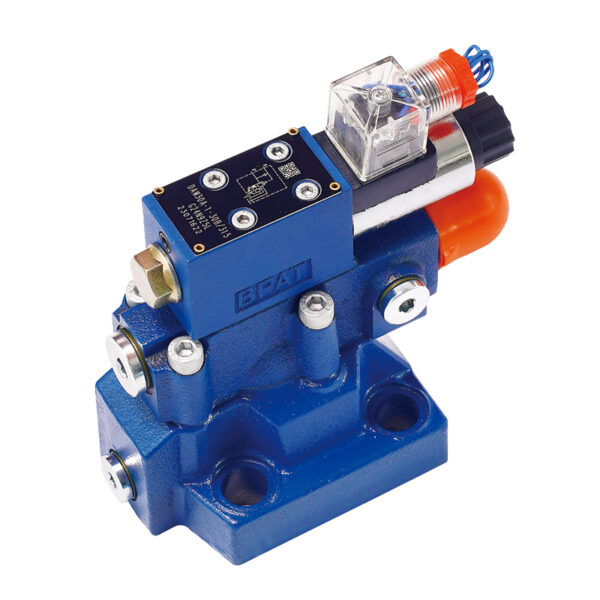

Pilot operated unloading valve DAW10
Brand : ONEDERFUL®
Model ：DAW30A-1-30B/315
Certificate: ISO9001-2008
Origin : China
Transportation : By sea / Air DHL / UPS / TNT / Fedex
Payment : T/T transfer Western Union PayPal L/C
The pilot-operated unloading valve is a type of hydraulic valve that controls the unloading or diversion of excess fluid flow within a hydraulic system. It typically consists of a main valve and a pilot valve. The pilot valve is responsive to system pressure, and when the pressure reaches a set level, it actuates the main valve to unload or divert the excess fluid to a low-pressure reservoir or circuit. This type of valve is commonly used to prevent overpressure in hydraulic systems, ensuring safe and efficient operation.
Minimum order quantity: 10 pieces
Payment method: T/T, Paypal, Western Union
Supply Ability: Annual output of 1,000,000
Delivery time: 10-15 days
Conventional packing: Wooden case
| PRODUCT PARAMETERS | ||||
| Specification | 10 | 20 | 30 | |
| Max working pressure Mpa | 31.5 | |||
| Max.Flow （L/min） | 40 | 100 | 250 | |
| Working voltage | DC | 12/24 | ||
| AC | 110/220 | |||
| Pressure adjustment
Mpa |
80 / 160 / 315 | |||
| Design Number | 30 | |||
The company pursues the concept of “continuous innovation, the pursuit of first-class”, and is willing to provide domestic and foreign customers with high-quality products and satisfactory service.
